Falkirk Wheel, Scotland, United Kingdom

Design
Architectural services were supplied by Scotland-based RMJM, from initial designs by Nicoll Russell Studios and engineers Binnie Black and Veatch. The main project architect was an RMJM architect named Tony Kettle.
Bachy/Soletanche and Morrison Construction Joint Venture won the contract to design the wheel and receiving basin, a new section of canal, a tunnel beneath the Antonine wall and a section of aqueduct. In turn the Joint Venture appointed Butterley Engineering to design and construct the wheel. Butterley undertook all construction work for the wheel and set up its own team to carry out the design work. This team comprised Tony Gee and Partners, to undertake the structural design responsibilities and M G Bennett & Associates to design the mechanical and electrical equipment for the wheel.

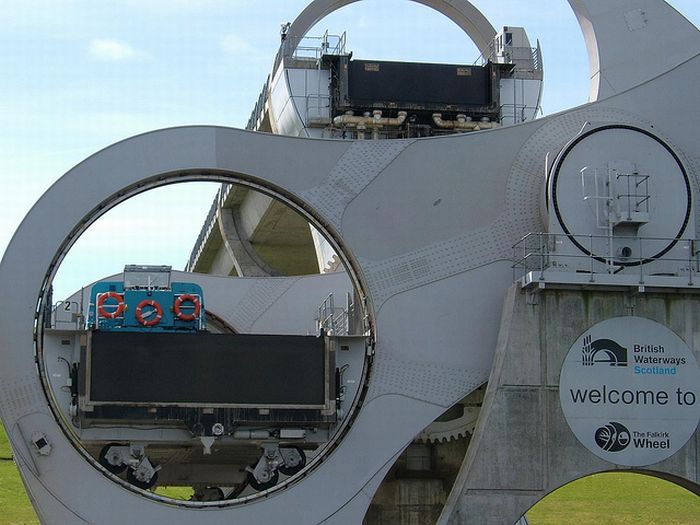

The wheel has an overall diameter of 35 metres (115 ft) and consists of two opposing arms which extend 15 metres beyond the central axle and take the shape of a Celtic-inspired, double-headed axe. Two sets of these axe-shaped arms are attached about 25 metres (82 ft) apart to a 3.5 metres (11 ft) diameter axle. Two diametrically opposed water-filled caissons, each with a capacity of 80,000 imperial gallons (360,000 l; 96,000 US gal), are fitted between the ends of the arms.
